Concert PA Tower Speaker Truss Lift System

The PA tower speaker truss features modular sections that can be easily assembled and disassembled. The modular design allows for flexibility in setup and transportation. Constructed from high-quality aluminum alloy, known for its lightweight yet durable properties. Aluminum is also corrosion-resistant, making it suitable for both indoor and outdoor use.
  • Lead Time:

    7-14 days
  • MOQ:

    1
  • goods stock:

    100
  • Product Detail

Concert PA Tower Speaker Truss Lift System

Product Features:

Dimensions:

  • Height: The truss system can reach up to 8 meters, providing a high elevation for optimal sound projection.
  • Width and Depth: The base width and depth are designed to provide maximum stability and can vary based on the specific model and configuration.



Weight Capacity:

  • High Load-Bearing: The truss system is capable of supporting significant weight loads, including large PA speakers and additional audio equipment, ensuring safety and stability during events.



Applications and Usage:

Concerts and Live Events:

  • PA Speaker Support: Ideal for elevating PA speakers to enhance sound distribution, ensuring clear and balanced audio coverage throughout the venue.
  • Line Arrays: Can support line array speaker systems, which are commonly used in large-scale concerts for even sound dispersion.



Festivals and Outdoor Events:

  • Sound Coverage: Provides elevated sound coverage for large outdoor spaces, ensuring that attendees throughout the area can hear the audio clearly.
  • Weather Resistant: Suitable for outdoor use, with components designed to withstand various weather conditions.



Corporate Events and Conferences:

  • Audio Presentations: Enhances audio presentations by positioning speakers at optimal heights for clear sound projection during speeches, presentations, and conferences.



Technical Specifications:

Parts Specification Quantity
Length (M) Main Tube (MM) Size (MM)
Main Truss 3 50×3.0 CS289×289 4 pcs
2 50×3.0 CS289×289 1 pcs
1 50×3.0 CS289×289
Supports Rod 4 50×3.0 2 pcs
Top Section for CS289×289 truss 1 pcs
3 Ways Corner for CS30 1 pcs
Adjustable Base for CS40 truss 7 pcs
Motor HDH-2, Chinese brand, Load: 500kg, Chain length: 25m, Lifting speed: 3.2m/min, 380V-3phase, Output: 750W, Ins.class: F, Body 1 pcs
Motor Case 1pcs motor in one case 1 pcs
Aluminium Support for motor 1 pcs
Truss Accessory Conical coupler, Spigots, Pins Whole set



Screw Truss + Manual Hoist

Parts Specification Quantity
Length (M) Main Tube (MM) Size (MM)
Main Truss 3 50×3.0 400×400 4 pcs
2 50×3.0 400×400 1 pcs
1 50×3.0 400×400
Supports Rod 4 50×3.0 2 pcs
Top Section for 400×400 screw truss 1 pcs
3 Ways Corner for 400×400 screw truss 1 pcs
Adjustable Base for 400×400 screw truss 7 pcs
Manual Hoist T1, Manual hoist, 1 ton, 6~12m 1 pcs
Aluminum Support for motor 1 pcs
Truss Accessory Conical coupler, Spigots, Pins Whole set

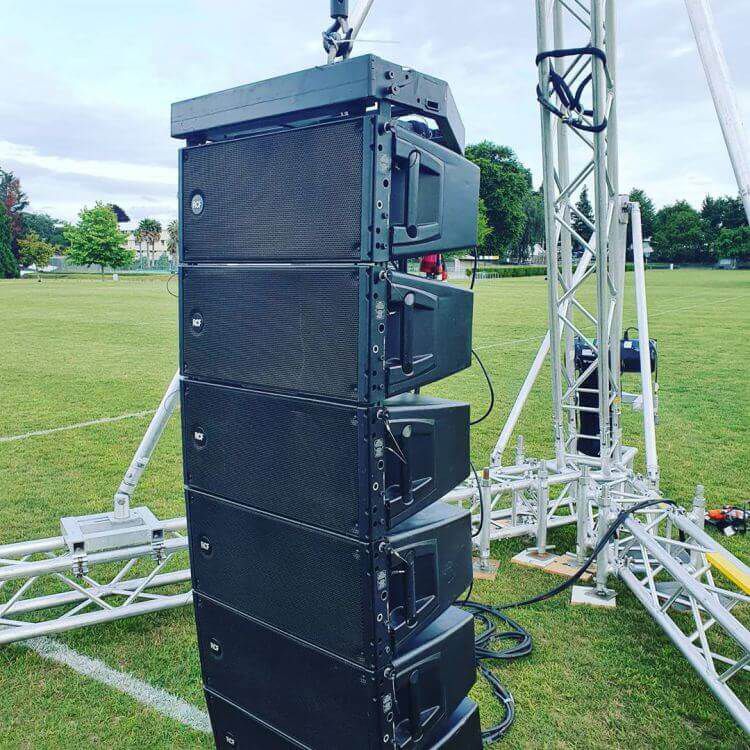

speaker tower truss
